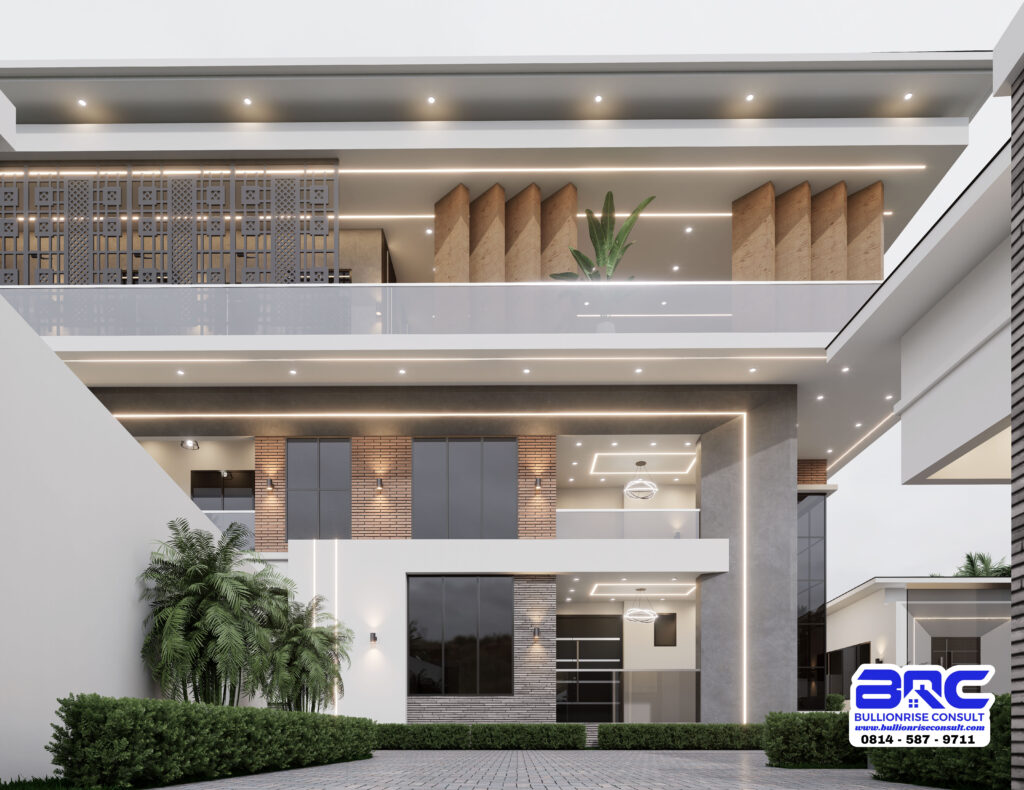

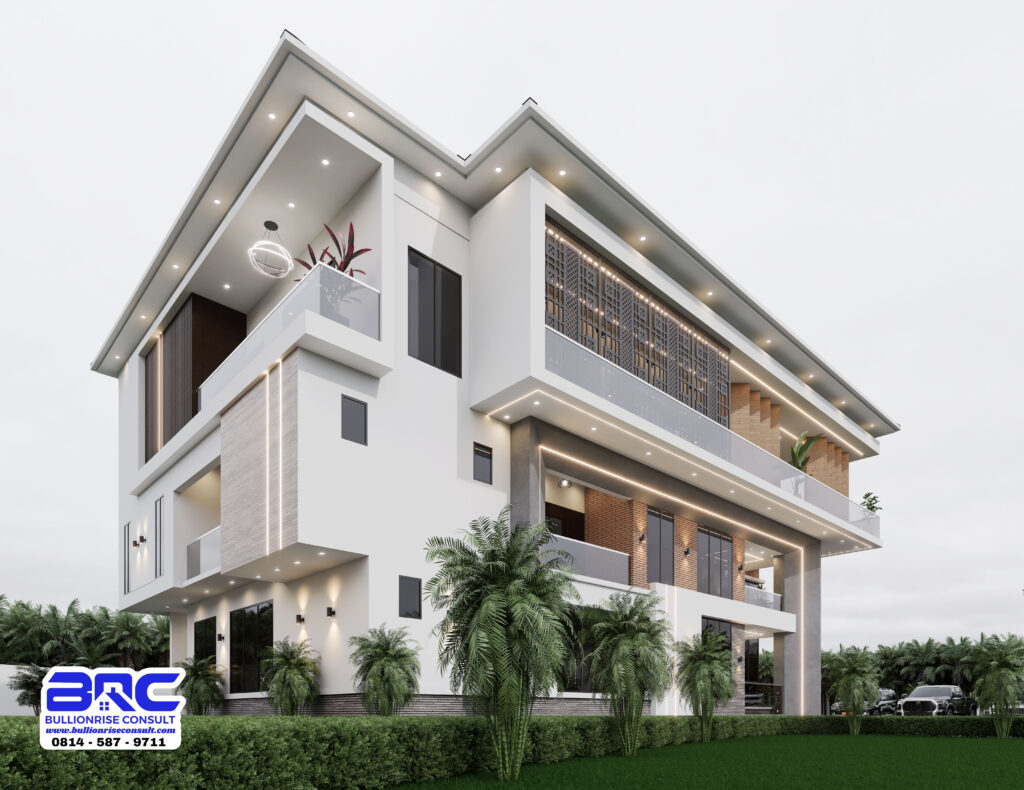

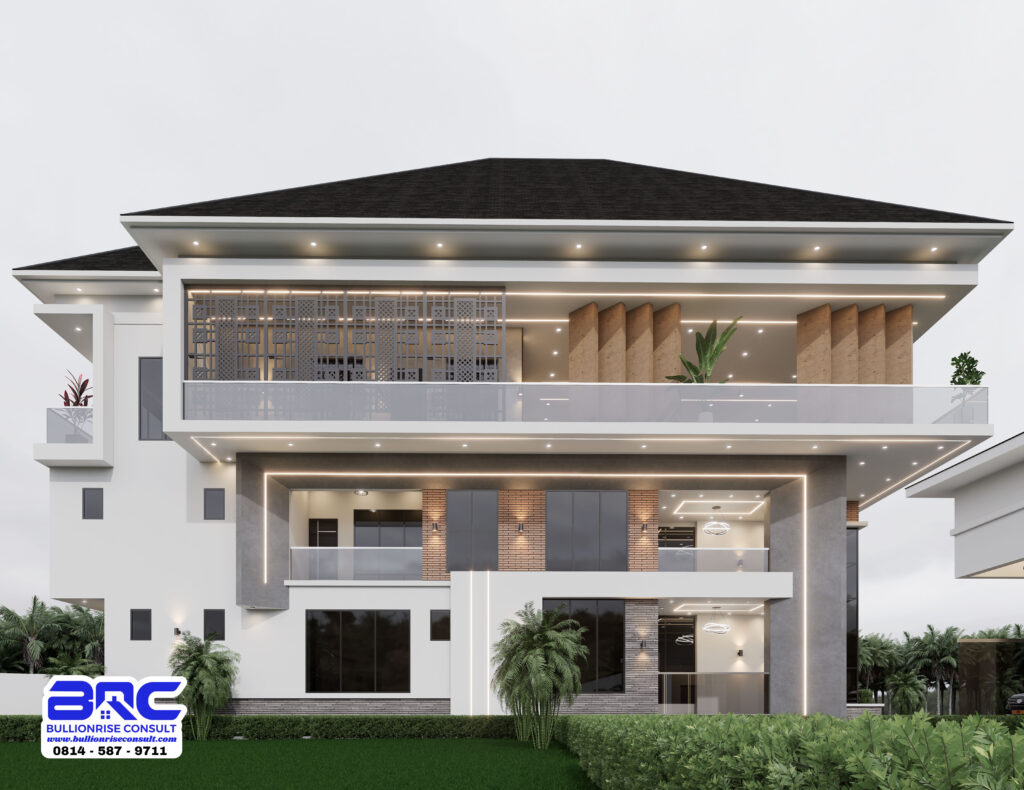

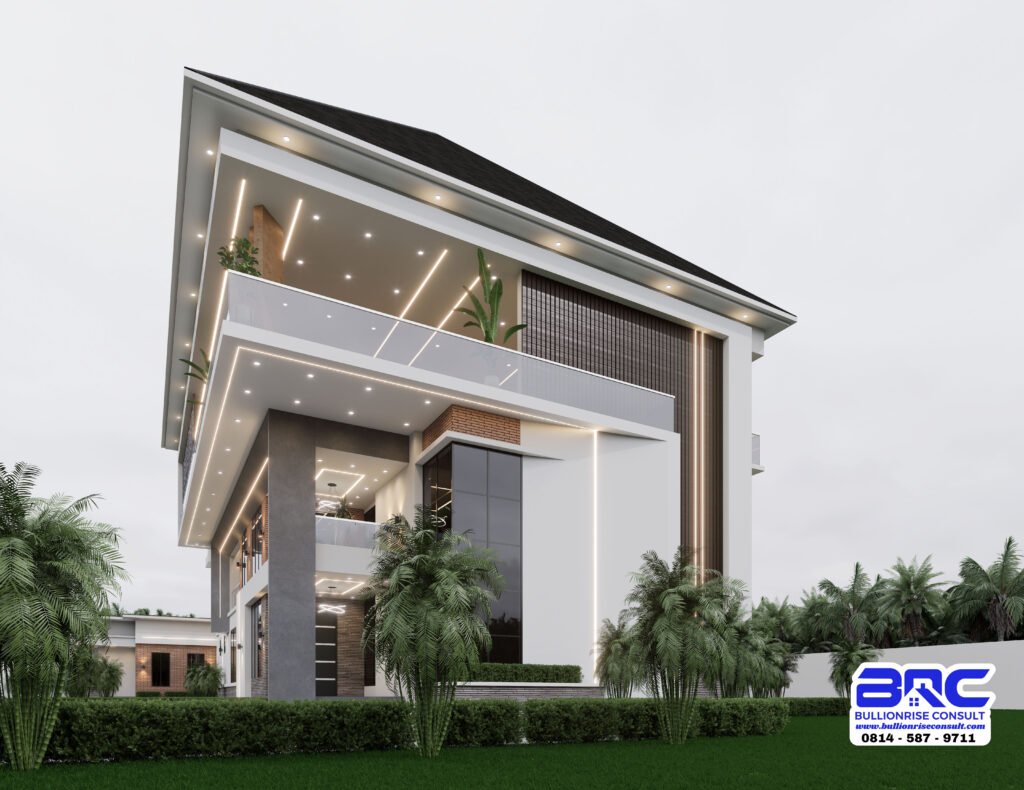

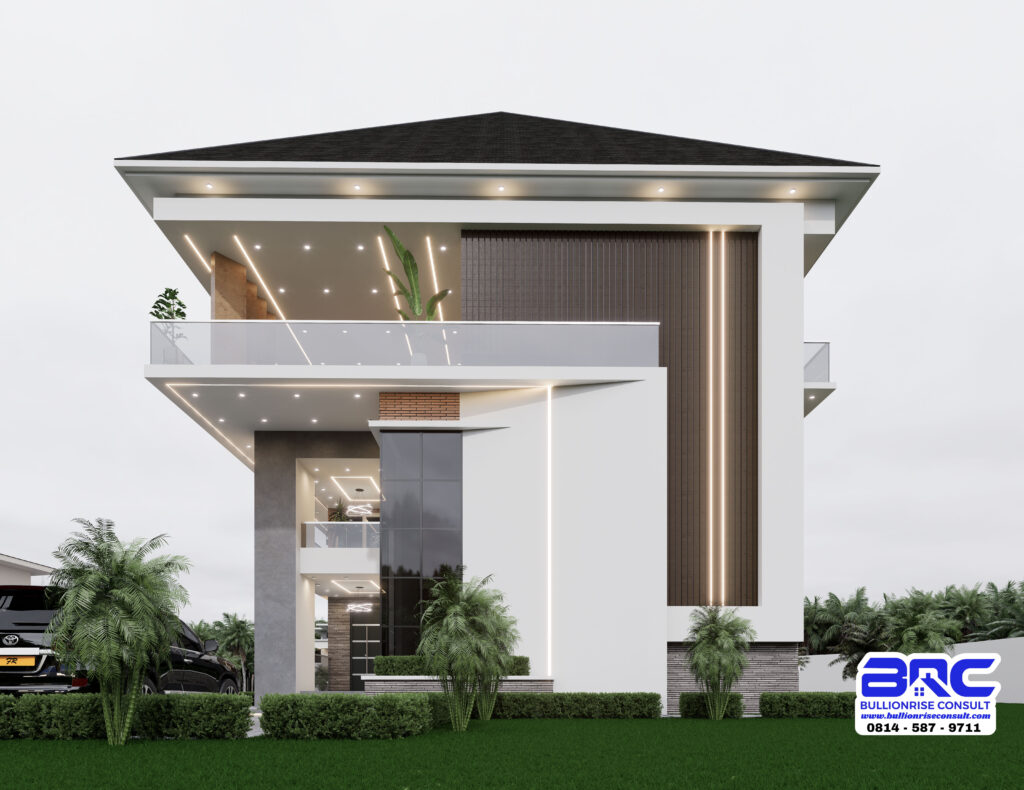

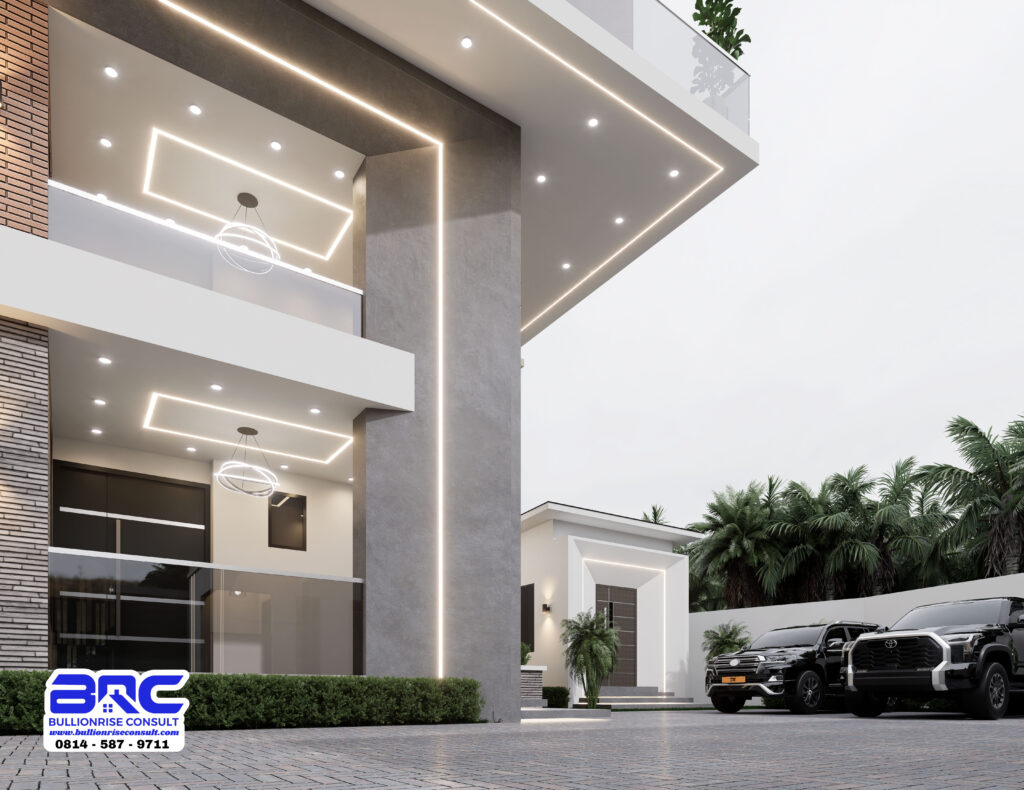

Imperial Estate is a 7-bedroom duplex house plan in Nigeria with a total area of 308 m², designed for a 100ft by 100ft plot. Its three-level layout includes en-suite bedrooms, a family lounge, home office, double balconies, double terraces and an outdoor lounge on the upper floor.
Table of Contents
ToggleImperial Estate at a Glance
Details and Specifications
- Plan Name: Imperial Estate
- Plan ID: PSN00262BA
- House Type: Duplex
- Total Area: 308 square meters
- Dimensions: 24m x 14m
- Suitable Land Size: 100ft x 100ft
- Bedrooms: 7
- Floors: 3
- Drawings Included: Architectural, Structural, Mechanical and Electrical plan
- Bill of Quantity: Free bill of quantity
Who Is This Duplex Plan For?
Imperial Estate may suit a large household looking for a seven-bedroom home with living spaces spread across three levels. The arrangement includes en-suite bedrooms, a family lounge, a home office, a master’s lounge and an outdoor lounge. The terraces and balconies also provide additional outdoor spaces within the building.
The plan is specified for a 100ft by 100ft plot. Before construction, confirm the required building setbacks, planning regulations and approval conditions with the relevant state or local planning authority. This will help establish whether the proposed building position complies with the requirements for your location.
Room-by-Room Layout
Ground Floor
- Entrance Porch: The entrance porch provides the entry point into the building.
- Ante-Room with W/C: This area is located near the entrance and includes a toilet facility.
- Sitting Room: The sitting room provides the main space for relaxation and receiving visitors.
- Dining Area: A separate dining area is included for family meals and dining with guests.
- Kitchen with Pantry and Balcony: The kitchen includes a pantry for storage and an attached balcony.
- Laundry: A dedicated laundry area is provided for household washing activities.
- Two En-Suite Bedrooms: The ground floor has two bedrooms, each with its own bathroom.
- Stairs: The general staircase connects the ground floor to the first floor.
- Stairhall: The stairhall forms part of the circulation arrangement within the building.
First Floor
- Four En-Suite Bedrooms: Four bedrooms are provided on this floor, each with its own bathroom.
- Family Lounge: The family lounge provides an additional shared living area upstairs.
- Terrace: A terrace is included on the first floor, providing an outdoor area.
- Gallery: The gallery forms part of the upper-floor arrangement.
- Home Office: A dedicated home office provides space for work or other personal activities.
- Double Balcony: The first floor features a double balcony.
- Void Over Sitting Room: The void creates an open space above the sitting room, connecting the two levels visually.
- Stairs: The general staircase provides access between the ground and first floors.
- Stairhall: The stairhall is part of the circulation arrangement leading towards the upper level.
Second Floor
- Master’s Bedroom with Walk-In Closet: The second floor contains the master’s bedroom, which includes a walk-in closet.
- Storage Room: A separate storage room is included on this floor.
- Double Terrace: The second floor features a double terrace, providing additional outdoor space.
- Outdoor Lounge: An outdoor lounge is included for relaxation and spending time outside.
- Master’s Lounge: The master’s lounge provides an additional private living area.
- Private Stairhall: The stairhall leading to the second floor is private, separate from the general staircase serving the ground and first floors.
What Is Included in the Imperial Estate Plan?
Every Imperial Estate comes with the following drawing:
- Architectural Drawing: Shows the building layout and architectural details.
- Structural Drawing: Provides the structural design information.
- Mechanical Drawing: Covers the mechanical services.
- Electrical Drawing: Provides the electrical layout.
- Free Bill of Quantity (BQ): Gives a breakdown of the materials and labour required for the project to help with budgeting.
Drawing Type
- Working Drawing: Can be approved in some states.
- Detailed Drawing: Can be approved anywhere in Nigeria.
Deliver Method
- You can receive your plan as PDF
- Door-step delivery






How Much Does It Cost to Build a 7 Bedroom Duplex?
The cost of building a 7-bedroom duplex like Imperial Estate depends on several factors. These include the location of the project, the quality of finishes selected, current prices of building materials and the contractor handling the construction.
Imperial Estate has a total area of 308 m² and is arranged across three levels. The different rooms, terraces, balconies and lounge areas are also part of the scope to consider when preparing a construction budget.
The free Bill of Quantity helps you understand the materials and labour required for the project. You can use it to check current prices in your area and plan your spending before construction begins.
Frequently Asked Questions
What Land Size Does Imperial Estate Need?
Imperial Estate is specified for a 100ft by 100ft plot. However, the building must also comply with the required setbacks and planning regulations in your location. Confirm these requirements with the relevant planning authority before starting construction.
How Many Bedrooms Does Imperial Estate Have?
Imperial Estate is listed as a seven-bedroom duplex. The ground floor has two en-suite bedrooms, the first floor has four en-suite bedrooms, and the second floor contains the master’s bedroom with a walk-in closet.
Does the Plan Come with a Bill of Quantity?
Yes. The plan comes with a free Bill of Quantity. It provides a breakdown of the materials and labour required for the project, helping you understand the resources involved and prepare your construction budget.
Can the Plan be Approved by the Government?
The Working Drawing can be approved in some states, while the Detailed Drawing can be approved anywhere in Nigeria. Final approval is subject to the requirements of the relevant planning authority and the documents submitted.
Can I Change the Layout?
If you have specific requirements or would like to adjust parts of the layout, contact Bullionrise Consult to discuss your ideas. The team can advise you on the changes you want and the options available for a customized design.
How Do I Get The Plan?
Contact Bullionrise Consult on WhatsApp and state that you are interested in Imperial Estate (PSN00262BA). You can ask about the plan price, request the free BQ and confirm your preferred delivery option.
Get The Imperial Estate Plan
Ready to build? Chat with us on WhatsApp by clicking the request house plan to get the price for Imperial Estate (PSN00262BA), request your free bill of quantity, or ask about a custom design. You can also visit our offices in Lekki, Lagos or in Nsukka, Enugu State.
