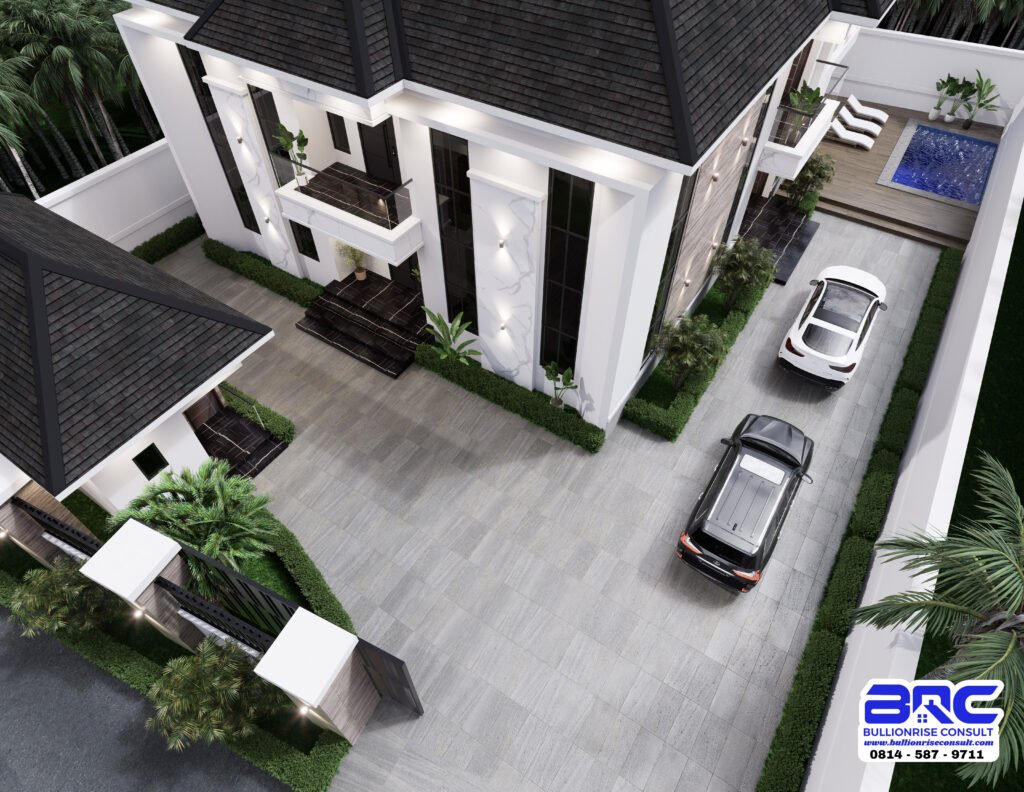

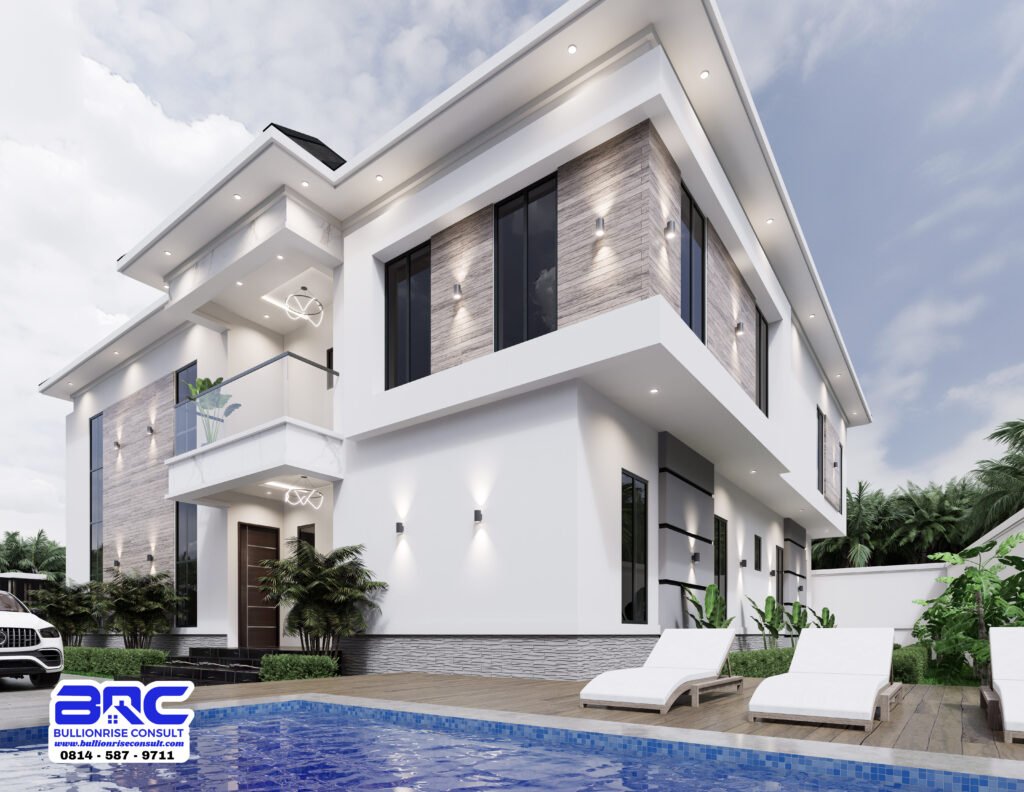

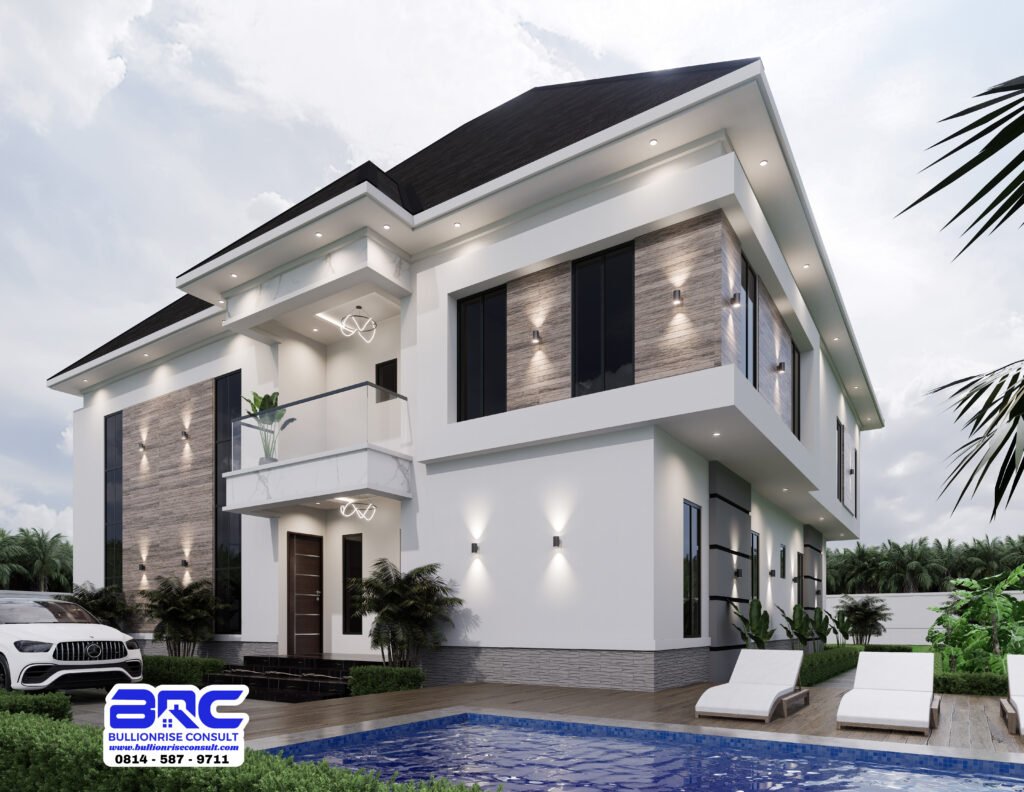

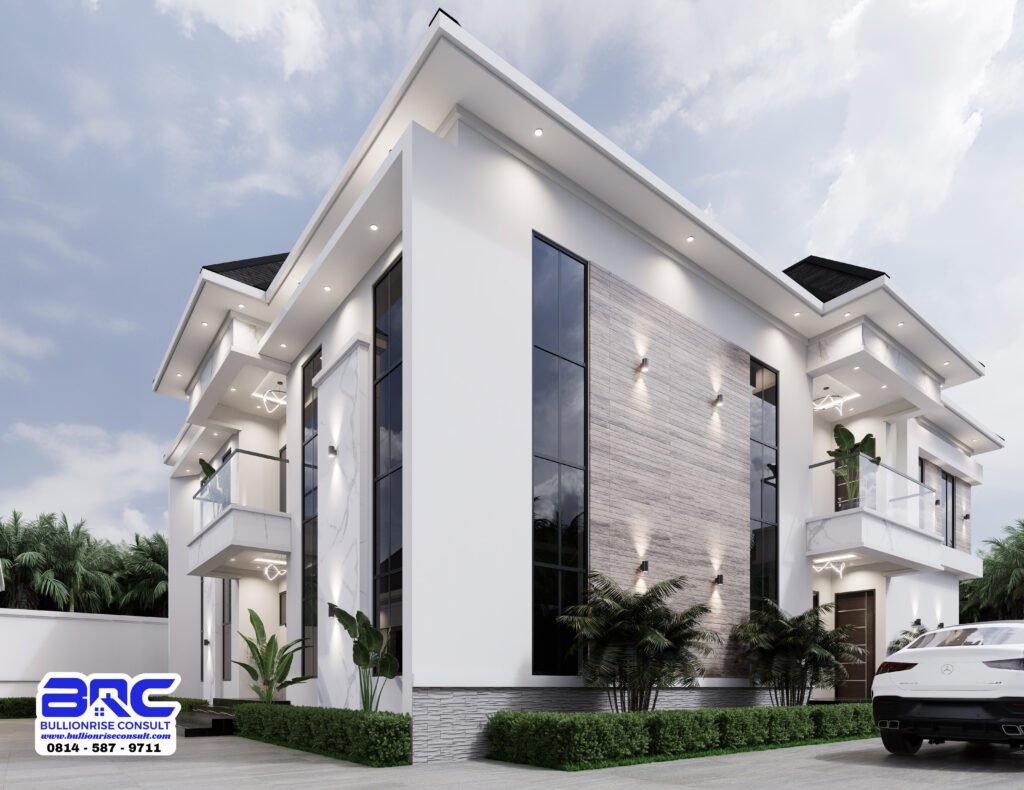

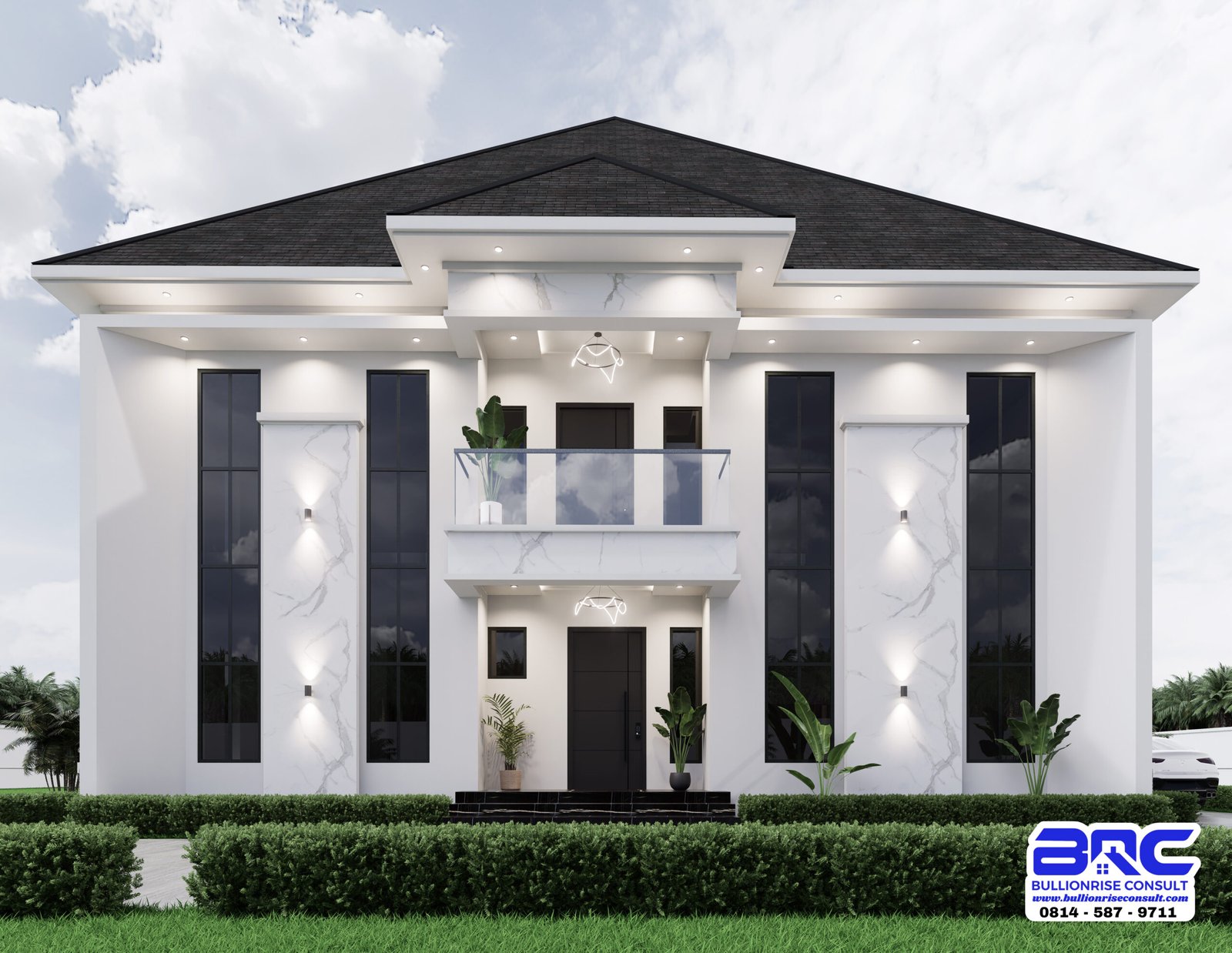

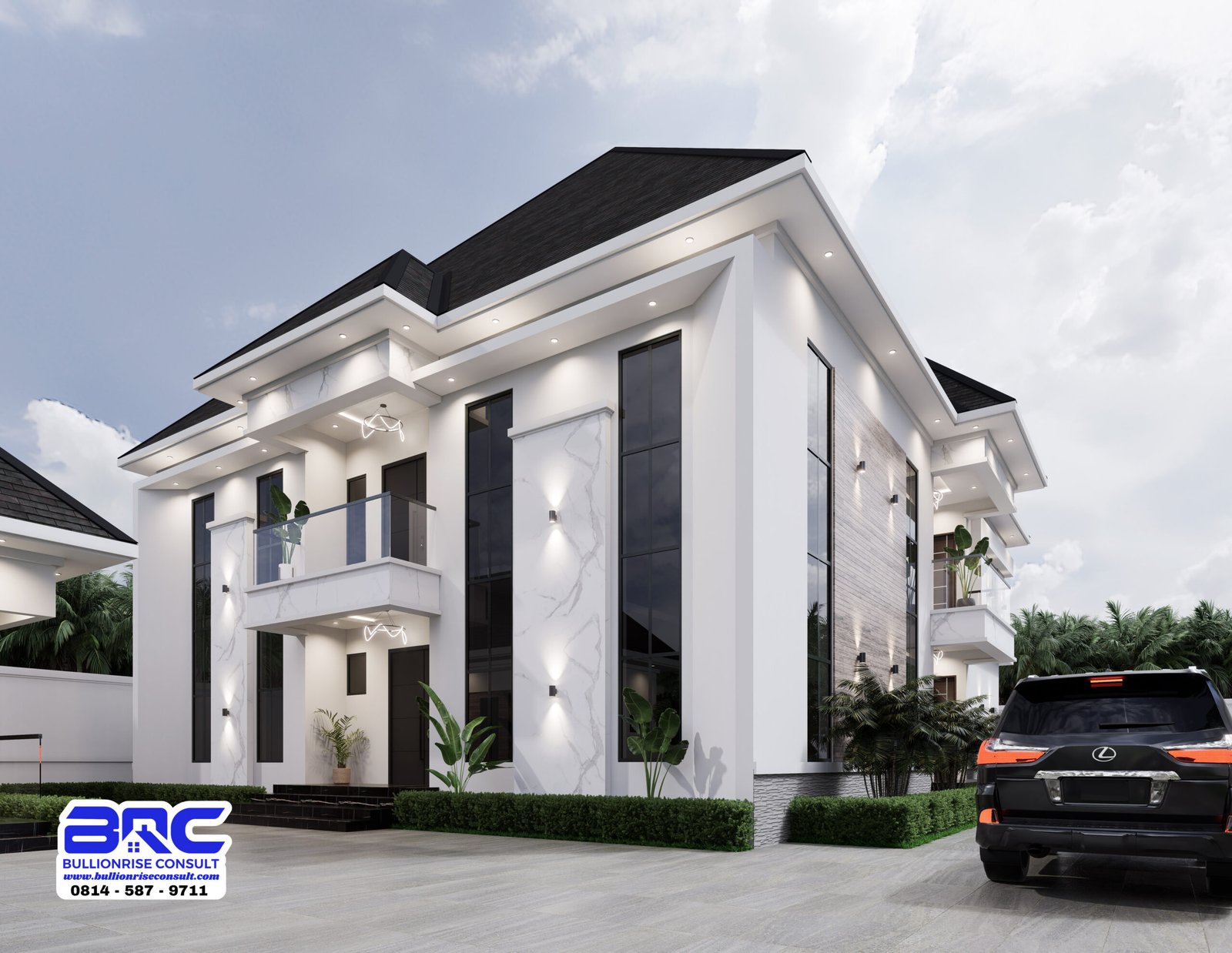

Ivory Manor is a 4-bedroom duplex house plan in Nigeria, designed for a 50ft x 100ft plot. It covers 255 m² on a 15m x 17m footprint over two floors. It has a family lounge, a void over the sitting room and balconies on both upstairs bedrooms.
Table of Contents
ToggleIvory Manor at a Glance
Details and Specifications
- Plan name: Ivory Manor
- Plan ID: PSN00305BA
- House type: Duplex
- Total area: 255 square meters
- Length x width: 15m x 17m
- Suitable land size: 50ft x 100ft
- Floors: 2
- Bedrooms: 4
- Drawings included: Architectural, Structural, Mechanical and Electrical plans
- Bill of quantity: Free with every plan
Who Is This Duplex For?
Ivory Manor suits a family that wants a guest bedroom on the ground floor and the main bedrooms upstairs. Visitors or older relatives can use the ground floor without climbing the stairs. The first floor has the master’s bedroom and another bedroom, both en-suite with balconies. The family lounge and kitchenette upstairs give the household its own living space.
The 15m x 17m footprint fits a 50ft x 100ft plot, so it is a good match if you own a standard residential plot and want a four-bedroom home. Before building, confirm the setback and approval rules of your state or local planning authority.
Room-by-Room Layout
Ground Floor
- Entrance porch: You enter the house through a covered porch.
- Ante-room with W/C: Just inside the door is an ante-room with a toilet. Visitors can use it without going further into the house.
- Sitting room: The sitting room is the main living space, close to the entrance. The first floor has a void over it.
- Dining area: The dining area is set aside for meals.
- Guest bedroom: Visitors have their own bedroom on the ground floor.
- Bedroom (en-suite): This ground floor bedroom has its own bathroom.
- Kitchen with pantry and balcony: The kitchen has a pantry for supplies. It also has a balcony.
- Stairs and stairhall: The stairs and the stairhall lead up to the first floor.
First Floor
- Family lounge: The family lounge is a shared sitting space upstairs, so the household can relax without going downstairs.
- Void over the sitting room: The void opens up the space above the sitting room and links the two floors.
- Kitchenette with store: The kitchenette lets you prepare light meals upstairs, and it has its own store.
- Master’s bedroom (en-suite) with balcony: The master’s bedroom has its own bathroom and a balcony.
- Bedroom (en-suite) with balcony: The second upstairs bedroom also has its own bathroom and a balcony.
- Sit-out terrace: The sit-out terrace is an open-air seating space upstairs.
- Stairs and stairhall: The stairs and the stairhall connect the first floor to the ground floor.
What Is Included in the Ivory Manor Plan?
Each Ivory Manor plan comes with:
- Architectural plan: floor plans, elevations and sections showing the layout and dimensions
- Structural plan: foundation, column, beam and slab details showing how the building is supported
- Mechanical plan: plumbing and water supply layout
- Electrical plan: lighting, socket and wiring layout
- Free bill of quantity (BQ): a breakdown of the materials and labor needed to build, so you can budget before you start
Drawing Type
- Working Drawing: Suitable for approval in some states.
- Detailed Drawing: Can be approved anywhere in Nigeria.
Delivery Method
- You can receive your plan as PDF
- Door-step delivery






How Much Does It Cost to Build a 4-Bedroom Duplex?
The cost of building Ivory Manor depends on your location, the quality of finishes, the price of materials at the time you build, and whether you use a contractor or manage the project yourself.
A two-storey house needs more foundation, columns, beams and slabs than a bungalow. Ivory Manor also has four bedrooms with several bathrooms, a kitchen and a kitchenette, a void, balconies and a sit-out terrace. These are the areas where costs add up.
This is why every Ivory Manor plan comes with a free bill of quantity. It lists the quantities of blocks, cement, roofing, finishes and labor, so you can price each item at current market rates in your area instead of guessing. Material prices in Nigeria change often, so check them again before you buy.
Frequently Asked Questions
What Land Size Does Ivory Manor Need?
Ivory Manor is designed for a 50ft x 100ft plot. The building footprint is 15m x 17m. Check the setback rules of your state or local planning authority before you build, as they affect how the house sits on the plot.
How Many Bedrooms Does Ivory Manor Have?
Ivory Manor has four bedrooms over two floors. The ground floor has a guest bedroom and an en-suite bedroom. The first floor has the master’s bedroom and another bedroom, both en-suite with balconies.
Does The Plan Come with a Bill of Quantity?
Yes. A free bill of quantity comes with every Bullionrise Consult building plan. It lists the materials and labor needed to build Ivory Manor, so you can budget before you start.
Can This Plan Be Approved by the Government?
The Working Drawing can be approved in some states, and the Detailed Drawing can be approved anywhere in Nigeria. Tell us your state and we will advise you on the right option for Ivory Manor.
Can I Change The Layout?
If you want to adjust Ivory Manor or need a custom design, message us and our architects will tell you what is possible for your plot and your needs. Let us know what you would like to change.
How Do I Get The Plan?
Chat with us on WhatsApp, tell us you want Ivory Manor (PSN00305BA), and we will give you the price and delivery options for PDF or door-step delivery.
Get The Ivory Manor Plan
Ready to build? Chat with us on WhatsApp by clicking the request house plan to get the price for Ivory Manor (PSN00305BA), request your free bill of quantity, or ask about a custom design. You can also visit our offices in Lekki, Lagos or in Nsukka, Enugu State.
