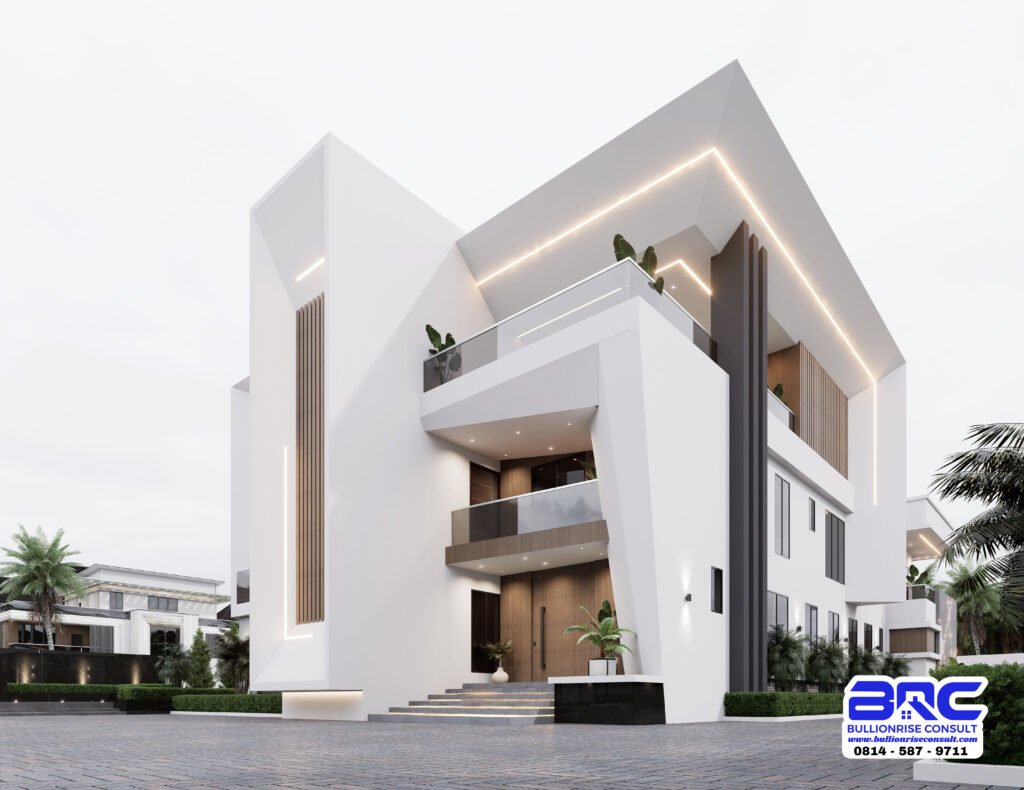

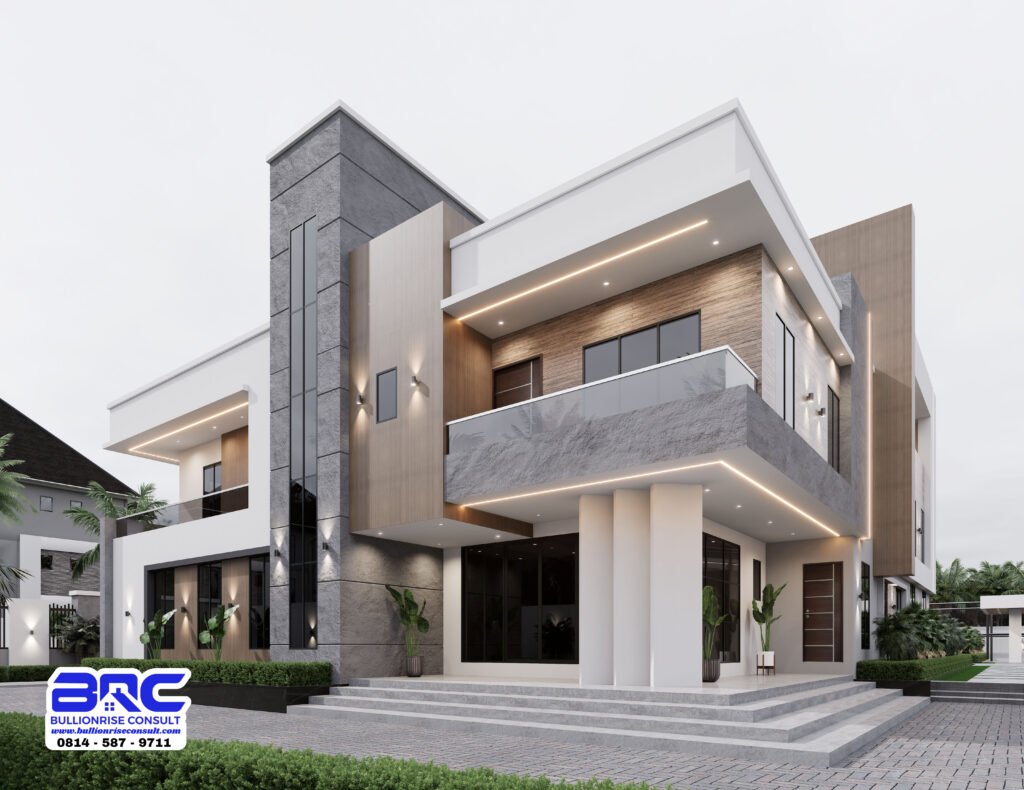

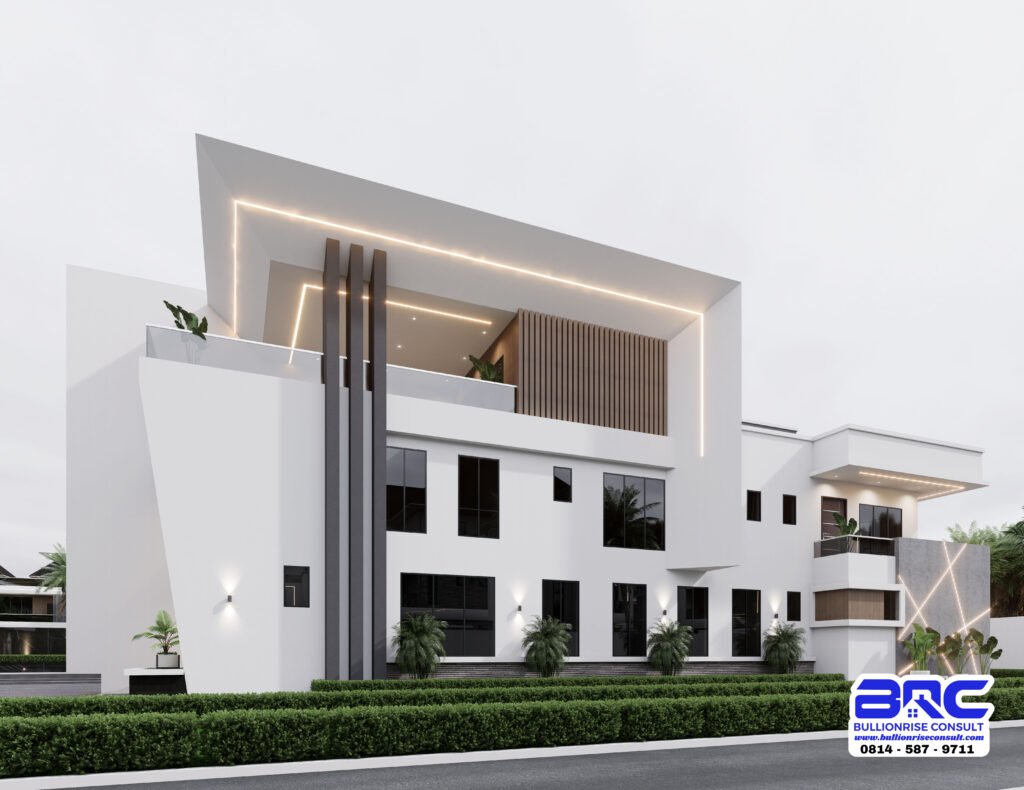

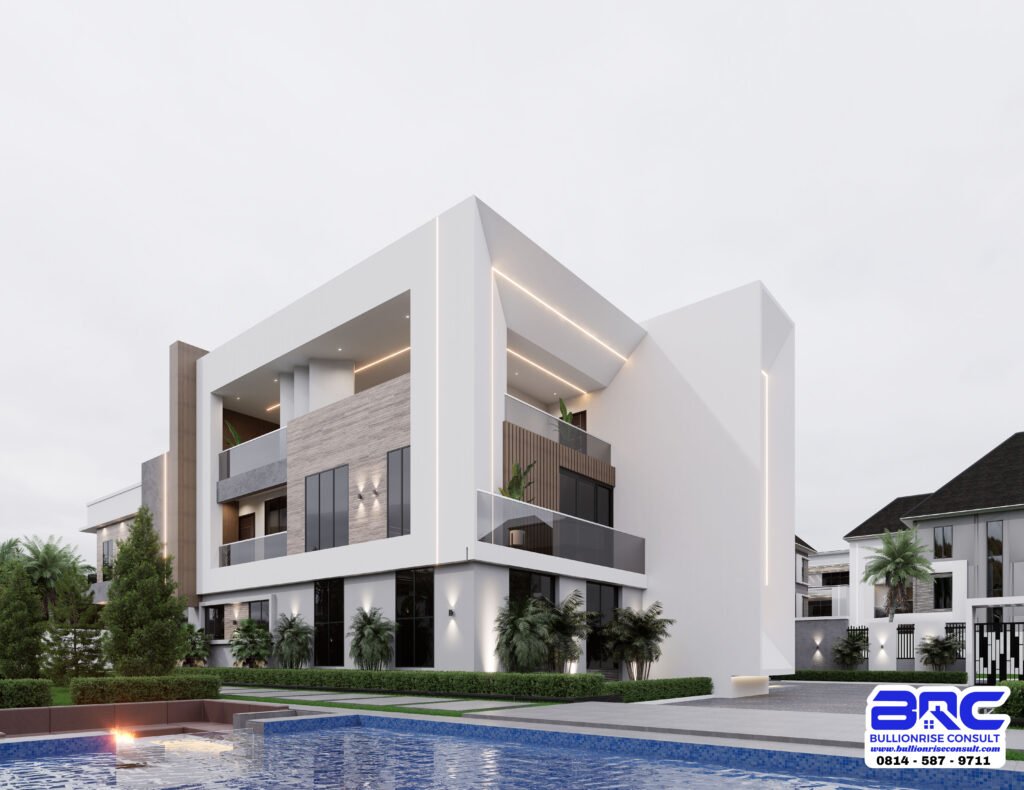

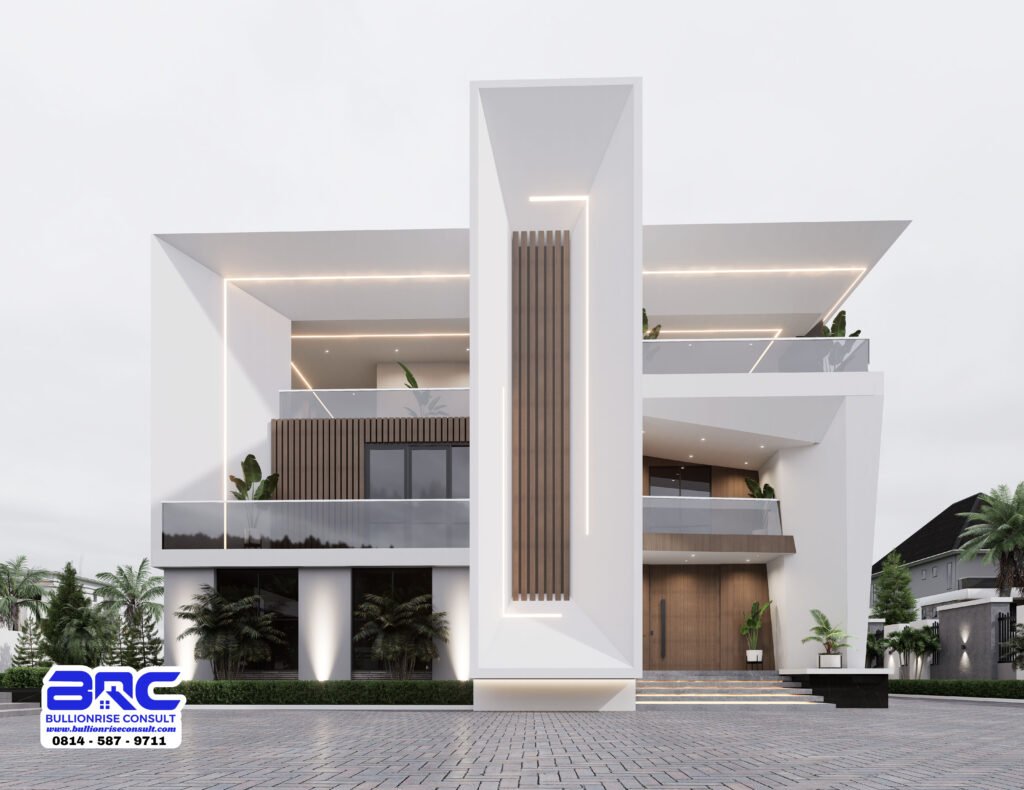

Grande Vista is a 7-bedroom duplex house plan in Nigeria with a penthouse, designed for a 150ft x 100ft plot. It covers 487 m² on a 30m x 19m footprint over three floors, with an elevator, a cinema, a gym and an office.
Table of Contents
ToggleGrande Vista at a Glance
Details and Specifications
- Plan name: Grande Vista
- Plan ID: PSN00272BA
- House type: Duplex with penthouse
- Total area: 487 square meters
- Length x width: 30m x 19m
- Suitable land size: 150ft x 100ft
- Floors: 3 (ground floor, first floor and penthouse floor)
- Bedrooms: 7
- Drawings included: Architectural, Structural, Mechanical and Electrical plans
- Bill of quantity: Free with every plan
Who Is This Duplex Plan For?
Grande Vista suits a large household that wants space for family, guests and entertainment. The ground floor has a master’s bedroom and a guest bedroom, so older relatives or visitors do not need to use the stairs. The first floor has two master-style bedrooms with terraces and three en-suite bedrooms. The cinema, gym, office and study also suit a family that works from home and likes to entertain.
The 30m x 19m footprint fits a 150ft x 100ft plot, so it is a good match if you own a wide residential plot. The elevator connects all three floors. Before building, confirm the setback and approval rules of your state or local planning authority.
Room-by-Room Layout
Ground Floor
- Entrance porch: You enter the house through a covered porch.
- Ante-room with W/C: Just inside the door is an ante-room with a toilet. Visitors can use it without going further into the house.
- Sitting room: The sitting room is the main living space, close to the entrance.
- Cinema: The house has its own cinema room for movie nights.
- Family lounge: The family lounge gives the household a second sitting space.
- Gym: The gym is on the ground floor, so you can exercise without leaving the house.
- Double balcony: The ground floor has a double balcony for open-air space.
- Lobby: The lobby links the main areas of the floor.
- Elevator and stairhall: The elevator and the stairhall connect the floors.
- Master’s bedroom with walk-in closet: The ground floor master’s bedroom has a walk-in closet.
- Guest bedroom: Visitors have their own bedroom on the ground floor.
- Dining area: The dining area is set aside for meals.
- Kitchen with walk-in pantry and laundry: The kitchen has a walk-in pantry for supplies and a laundry area.
First Floor
- Elevator and stairhall: The elevator and stairhall continue up from the ground floor.
- Sit-out terrace: The sit-out terrace is an open-air space upstairs.
- Office: An office on the first floor gives you a place to work.
- Kitchenette: The kitchenette lets you prepare light meals without going downstairs.
- Lobby: The lobby links the rooms on this floor.
- Master’s bedroom with walk-in closet and terrace: This bedroom has a walk-in closet and its own terrace.
- Madam’s bedroom with walk-in closet and terrace: Madam’s bedroom also has a walk-in closet and its own terrace.
- Three en-suite bedrooms: All three of these bedrooms have their own bathrooms, so no one shares.
- Family lounge: The family lounge is a shared sitting space upstairs.
Pent Floor
- Exclusive lounge: The penthouse has an exclusive lounge on the top floor.
- Study: The study is a quiet space for work or reading.
- Passage: A passage links the rooms on this floor.
- Elevator and stairhall: The elevator and stairhall connect the penthouse floor to the floors below.
- Terrace and outdoor sit-out: Gives the top floor two open air spaces.
What Is Included in the Grande Vista Plan?
Each Grande Vista Plan comes with:
- Architectural plan: floor plans, elevations and sections showing the layout and dimensions
- Structural plan: foundation, column, beam and slab details showing how the building is supported
- Mechanical plan: plumbing and water supply layout
- Electrical plan: lighting, socket and wiring layout
- Free bill of quantity (BQ): a breakdown of the materials and labor needed to build, so you can budget before you start
Drawing Type
- Working Drawing: Suitable for approval in some states.
- Detailed Drawing: Can be approved anywhere in Nigeria.
Delivery Method
- You can receive your plan as a PDF
- Door-step delivery






How Much Does It Cost to Build a 7 Bedroom Duplex with Penthouse?
The cost of building Grande Vista depends on your location, the quality of finishes, the price of materials at the time you build, and whether you use a contractor or manage the project yourself.
A 487 m² house over three floors needs a lot of foundation, columns, beams and slabs. The elevator, the cinema, the gym, the terraces and the many bathrooms are other areas where costs add up.
This is why every Grande Vista plan comes with a free bill of quantity. It lists the quantities of blocks, cement, roofing, finishes and labor, so you can price each item at current market rates in your area instead of guessing. Material prices in Nigeria change often, so check them again before you buy.
Frequently Asked Questions
What Land Size Does Grande Vista Need?
Grande Vista is designed for a 150ft x 100ft plot. The building footprint is 30m x 19m. Check the setback rules of your state or local planning authority before you build, as they affect how the house sits on the plot.
How Many Bedrooms Does Grande Vista Have?
Grande Vista has seven bedrooms over three floors. The ground floor has a master’s bedroom and a guest bedroom. The first floor has a master’s bedroom, Madam’s bedroom and three en-suite bedrooms. An elevator connects all the floors.
Does The Plan Come with a Bill of Quantity?
Yes. A free bill of quantity comes with every Bullionrise Consult building plan. It lists the materials and labor needed to build Grande Vista, so you can budget before you start.
Can this Plan be Approved by the Government?
The Working Drawing can be approved in some states, and the Detailed Drawing can be approved anywhere in Nigeria. Tell us your state and we will advise you on the right option for Grande Vista.
Can I Change the Layout?
If you want to adjust Grande Vista or need a custom design, message us and our architects will tell you what is possible for your plot and your needs. Let us know what you would like to change.
How Do I Get the Plan?
Chat with us on WhatsApp, tell us you want Grande Vista (PSN00272BA), and we will give you the price and delivery options for PDF or door-step delivery.
Get the Grande Vista Plan
Ready to build? Chat with us on WhatsApp by clicking the request house plan to get the price for Grande Vista (PSN00272BA), request your free bill of quantity, or ask about a custom design. You can also visit our offices in Lekki, Lagos or in Nsukka, Enugu State.
